Standard Grounding Kit for 1/4 in and 3/8 in corrugated coaxial CNT
223158-4
Standard Grounding Kit for 1/4 in and 3/8 in corrugated coaxial cable, CNT-300 and CNT-400 braided cable, and elliptical waveguide 240 and 380
Product Classification
| Product Type | Grounding kit |
| Ordering Note | CommScope® standard product in the United States and Canada |
General Specifications
| Bonding Conductor Jacketing Material | PVC |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Cable Type | Braided | Corrugated | Elliptical waveguide |
| Color | Black |
| Grounding Kit Type | Standard Grounding Kits |
| Grounding Strap Material | Tinned copper |
| Lug Attachment | Field attached |
| Lug Type | One-hole lug |
| Thread Size | 3/8 in |
Dimensions
| Bonding Conductor Length | 1524 mm | 60 in |
| Cable Jacketing Removal Length, maximum | 58.42 mm | 2.3 in |
| Cable Jacketing Removal Length, minimum | 55.88 mm | 2.2 in |
| Compatible Diameter, maximum | 9.652 mm | 0.38 in |
| Compatible Diameter, minimum | 6.223 mm | 0.245 in |
| Nominal Size | 1/4 in | 3/8 in |
| Waveguide Size | WR28 | WG22 | R320 | WR42 | WG20 | R220 |
Electrical Specifications
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method |
| MIL-STD-188-124A |
| Lightning Protection Test Method |
| IEC 1024-1 |
Material Specifications
| Rivet Material | Copper |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Butyl and electric tape |
Packaging and Weights
| Height, packed | 266.7 mm | 10.5 in |
| Width, packed | 175.26 mm | 6.9 in |
| Length, packed | 58.42 mm | 2.3 in |

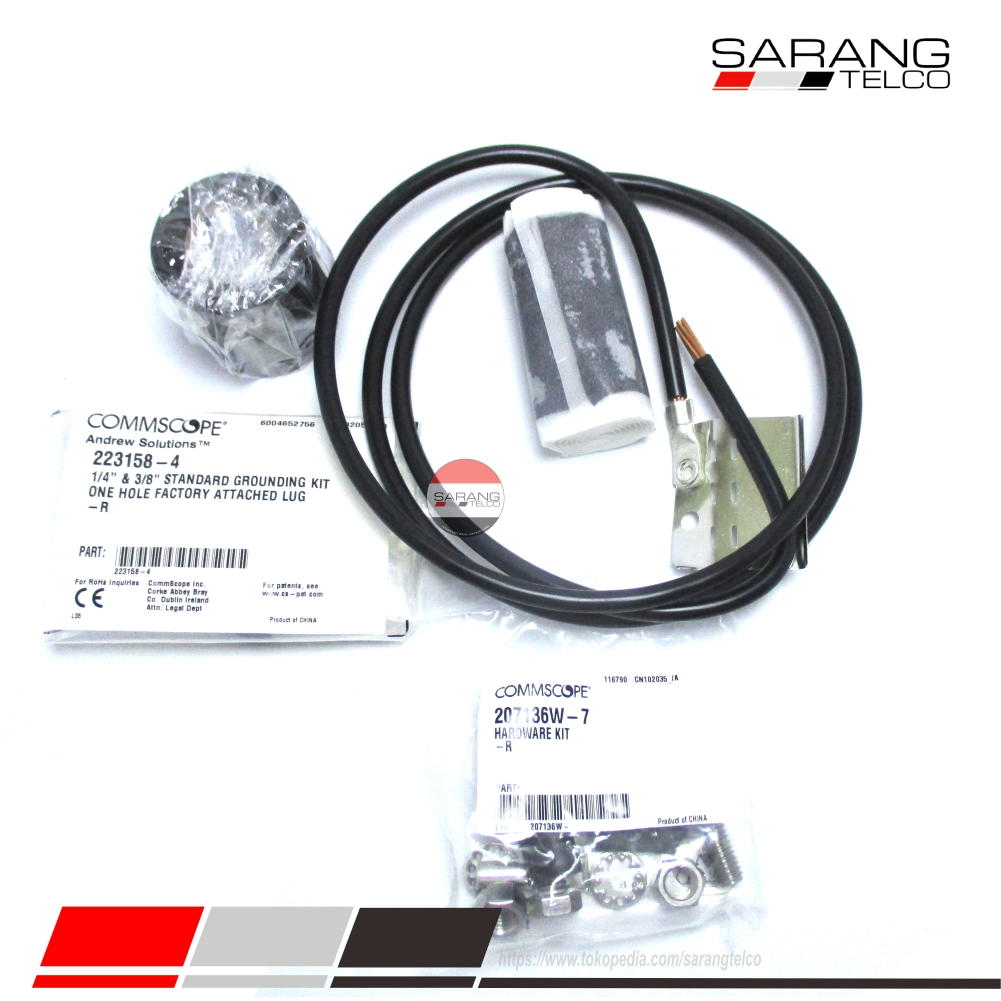

| Included | Grounding kit | Hardware | Lug | One roll of 2-1/2 in butyl rubber tape | One roll of 3/4 in PVC tape |
| Packaging quantity | 1 |
| Weight, gross | 0.34 kg | 0.75 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
ISO 9001:2015  |
Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
